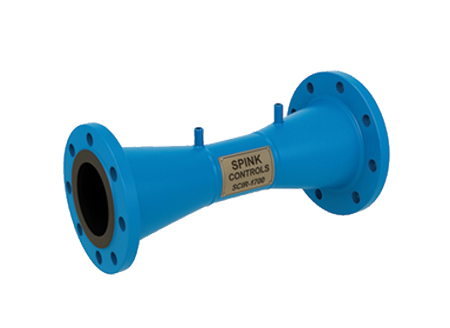

Venturi Meter

MODEL : SC / R - 1700

Spink Controls’ Venturi Flowmeter is a highperformance differential pressure flow element designed for accurate measurement of liquids, gases, and steam. It operates on Bernoulli’s principle, offering excellent accuracy with low permanent pressure loss and long-term stability. The smooth converging and diverging sections minimize turbulence and wear, making it ideal for large pipeline applications in power plants, water treatment, process, and chemical industries. Its rugged construction and high repeatability ensure reliable performance even under varying flow conditions.

PRINCIPLE OF OPERATION

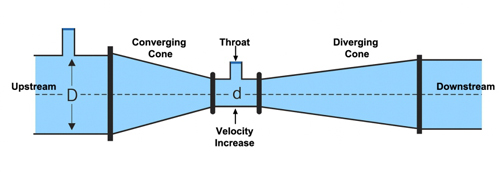

The Venturi meter works on the Bernoulli principle. As fluid flows through the converging section, velocity increases and static pressure drops at the throat. The pressure difference between the inlet and the throat is measured and used to calculate flow rate. The diverging section then recovers most of the lost pressure, resulting in low permanent pressure loss
