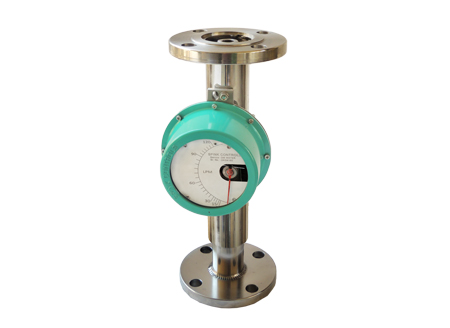

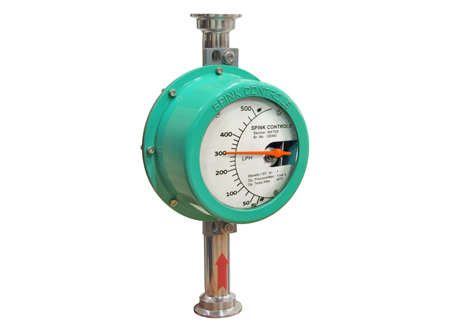

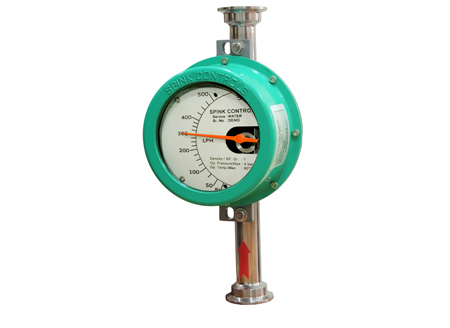

Metal Tube Rotameter
Metal Tube Rotameter is a Variable Area Flow Meter. It consists of a tapered tube, typically made of steel with a float, made of SS or PTFE. The differential pressure across the annulus area is constant. The float moves through the tapered tube up and down with respect to fluid flow. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
Technical Specification :
- ➩ Meter Body : Metalic (SS-316L / SS-316 / SS-304)
- ➩ Float : SS-316L / SS-316 / PTFE
- ➩ Scale : Aluminium / SS-304 / White Acrylic
- ➩ Connection : Top & Bottom Flanged Or Threaded
- ➩ Indicator Housing : Abs Plastic, Cast Aluminium
- ➩ Rated Temp. : 250℃
- ➩ Rated Pressure : 40 Bar
- ➩ Accuracy : ±2% On Full Scale
- ➩ Repeatability : 0.5%
- ➩ Rangeability : 0:1
- ➩ Accessories : Hi - Low Flow Switch
Technical Specification :
| Model No. | Maximum Flow M3/hr Water | Connection Flanged | CC Distance |
|---|---|---|---|
| SCMT- 401 | 5 | 1/2" to 1" | 350mm |
| SCMT- 402 | 10 | 1½ " to 2½" | 350mm |
| SCMT- 403 | 20 |
|
350mm |
| SCMT- 404 | 30 | 2½ " to 3" | 350mm |
| SCMT- 405 | 50 |
|
350mm |
| SCMT- 406 | 60 |
|
350mm |
|
100 | 4" | 500mm |
| SCMT- 407 | 130 |
|
500mm |
| SCMT- 408 | 180 |
|
500mm |
| SCMT- 409 | 200 | 8" | 500mm |
| SCMT 1M | 2 | 1/2" to 1" | 250mm |
| SCMT- 2M | 5 | 1" to 1½ " | 250mm |
| SCMT- 3M | 10 | 1½ to 2" | 250mm |
| SCMT- 4M | 20 | 1 ½ to 2" | 250mm |
