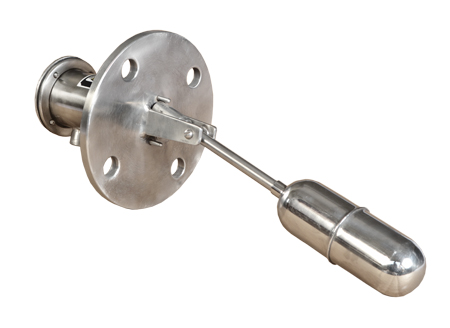

Side Mounted Level Switch
SERIES: SC / L - 501
Spink Controls' Side Mounted Level Switch is a reliable and easy-to-install device designed for accurate liquid level control in tanks and vessels. It is suitable for both corrosive and non-corrosive liquids and finds application in pump control, alarms, valve operation, and level indication.
Principle Of Operations
The switch operates on the magnetic repulsion principle, where the float contains a permanent magnet that interacts with a similar magnet housed within the switching unit. These magnets, positioned with like poles facing each other and separated by a non-magnetic barrier, ensure glandless construction and leak-proofperformance.
The assembly comprises three primary components:
- Switch Housing with Micro Switch
- Mounting Flange
- Float Assembly
Built for durability and dependable operation, the SC/L-501 offers long service life and can be customized in various materials and process connection sizes to meet diverse industrial requirements.
Engineering Specification
- Switch Type : Micro Switch – Spdt , Dpdt
- Switch Rating : 5 Amp, 240 Vac
- Enclosure Material Of : Weatherproof, Flameproof
- Construction : Micro Switch – Spdt , Dpdt
- Flange : Standard : Od – 120, PCD – 92 Mm. Ansi, Bis, Din Standard Flanges Also Available
- Float : Dia 50, 60, 75 Mm . Other On Request
- Design Temperature : 150°C (Higher Temperature On Request)
- Design Pressure : 20 Kg/Cm² (Higher Pressure On Request)
