Introduction

SERIES : SC / R -1000

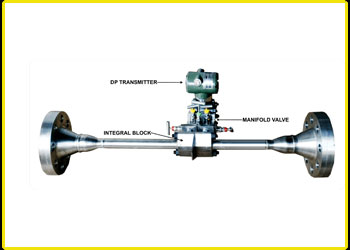

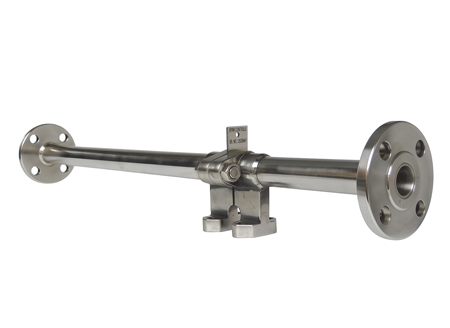

The Integral Orifice Plate Assembly is a precision-engineered flow measurement solution, ideal for applications requiring high accuracy at low flow rates in line sizes below 2’’. It is designed using the differential pressure principle, providing reliable and economical flow measurement for compact installations.

Features :
  • Line Size: 15 NB to 40 NB
  • Material Options: ANSI 316, ANSI SS 304, Monel, Hastelloy C
  • Gasket: PTFE
  • End Connections: Socket-weld or threaded ends for compact installation
  • Flanges: ASTM-A-105, A182, S 316, SS 314, Monel
  • Optional: IBR Approved Flanges for specialized applications
  • Available Sizes: 2" to 24"
  • Categories: flow, Flow element
