Float And Board Type Level Gauge
MODEL: SC / L - 301

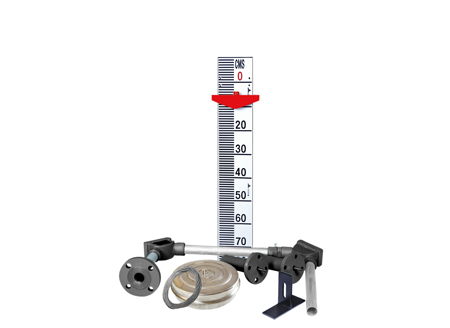

Spink Controls’ Float & Board Level Gauge is a simple, reliable, and cost-effective instrument for continuous liquid level measurement in large storage tanks. It provides clear, direct, and easily readable indication of the liquid level from a distance.
Principle of Operation
The Float & Board Level Gauge operates on a simple float-pulley mechanism. A float resting on the liquid surface moves up and down with the changing liquid level. This movement is transmitted through a stainless steel wire rope passing over a pair of pulleys to a pointer that travels along a 150 mm wide aluminium scale, providing a direct, continuous, and accurate indication of the liquid level - all without the need for external power.
Salient Features:
- Self-centring float design eliminates the need for guide wires.
- Rugged and weatherproof construction.

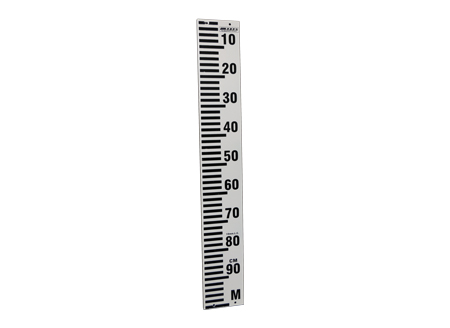

- Durable aluminium, powder-coated gauge board for long service life.
- Clear and bold markings on the gauge board, visible from a distance.
Engineering Specification :
- Construction : Guided
- Installation : Ground Level / Under Ground / Elevated Tanks
- Design Temperature : 80°C ( PP ) , 150°C ( SS )
- Design Pressure : Atmospheric

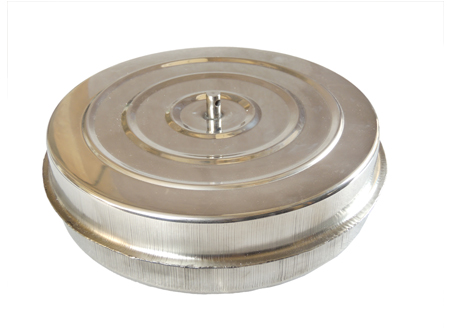

- Float : Ø 10” Or 12” Or Other On Request
- Float Material : Pp, Ss, Other On Request
- Guide Wire Material : Ss, Ptfe, Pp, Other On Request
- Pulley Material : Aluminium, Ss, Pp
