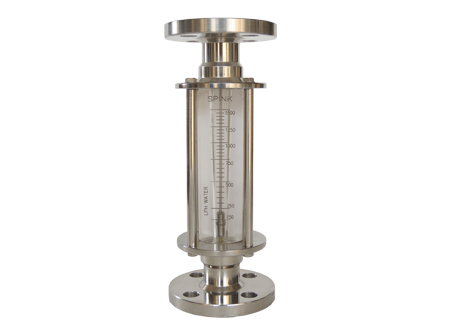

Main image preview

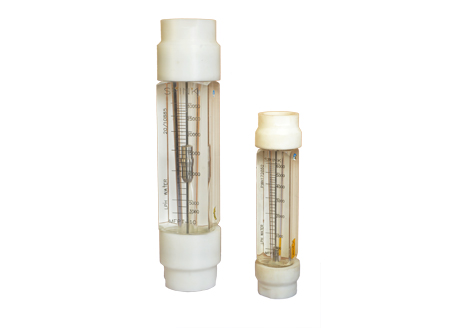

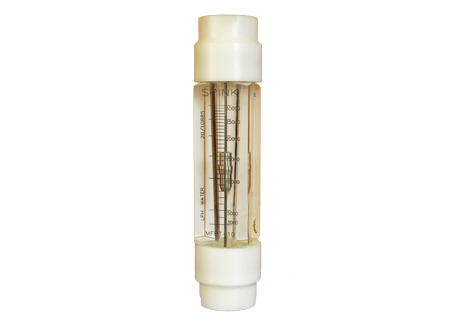

Thumbnail 1: Description of image 1 Thumbnail 2: Description of image 2 Thumbnail 2: Description of image 3
Introduction

MODEL: SC / R - 500

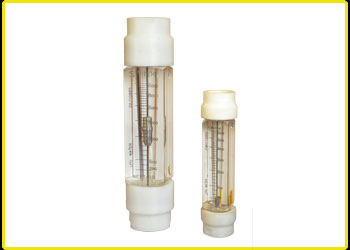

Acrylic Body Rotameter is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for flow measurement. We are leading manufacturer of Acrylic Body Rotameter, supplier of Acrylic Body Rotameter in Mumbai, India.

Technical Specification :
  • Maximum Range : Water up to 50 m3/hr, Air up to 1500 nm3/hr
  • Line Size : 1/4" to 4"
  • Range Ability : 10:1
  • Repeatability +/- 0.5 %
  • Accuracy : +/- 2 % of FSR
  • Temperature Rating : 60° C
  • Pressure Rating : 10 kg/cm2
  • Body / Metering Tube : Acrylic
  • Material of Wetted Part: SS304 / SS316 / PP / MS
  • Float : SS304 / SS316 Or Suitable To Service
  • Scale : Engraved on Meter Body
  • Optional : Needle Valve / Wall Mounting
  • C/C Distance : 190 mm to 450 mm
  • End Connection : FLANGED / TC / SCREWED (NPT / BSP)
  • Mounting Position : Vertical
