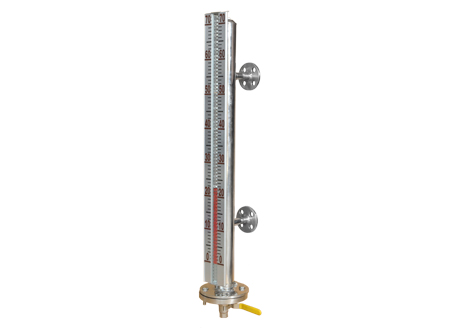

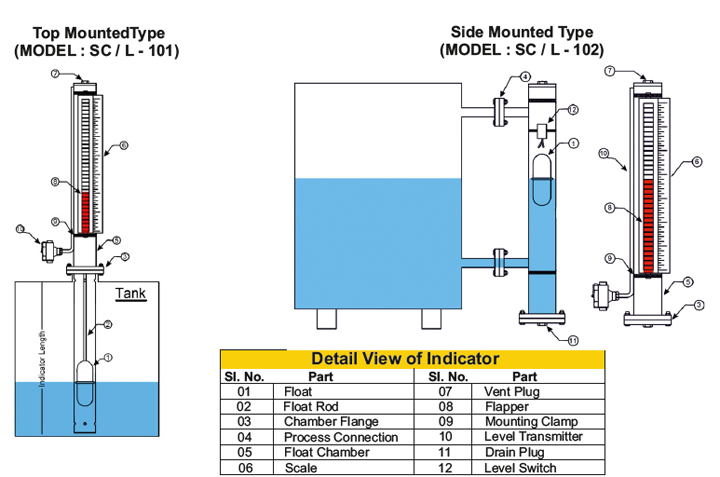

Magnetic Level Indicator
MODEL: SC / L - 100
Magnetic Level Indicator operates on principles of magnetic field coupling, to provide fluid level information. Float chamber is typically constructed with non magnetic pipe having process connection that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of process fluid. Float contains magnets to provide 360°C magnetic flux field
BI-COLOUR FLAPPER DESIGN
Indicator system consists of Bi-Colour Flapper equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic Float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in Float and Bi-Colour Flapper causes each Flapper to rotate 180°C
Follower Capsule Design
Indicator system consists of colour Follower Capsule which moves in glass tube inside the housing. As the level starts rising or falling, magnetic Float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in Float and Capsule causes Capsule to travel along with magnetic Float. For application where high and low electrical signals are required adjustable limit switch assemblies are provided. In application where continuous output is required, Reed transmitter are supplied.
Technical Specification :
- Mounting Type : Top / Side
- Indicator Length (c/c Distance) : 300 To 6000mm
- Indicator System : Bi-colour Flapper / Follower Capsule
- Housing for Indicator : SS Housing for SS Flapper, Aluminum Housing for Aluminum Flapper Follower Capsule, Glass Tube in Aluminum/SS Channel
- Vent : ½’’ Plugged / ½’’ Ball valve
- Drain : ½’’ Plugged / ½’’ Ball valve
- Maximum Temperature : 180° C for PP, 150° C for SS
- Maximum Pressure : 2 kg/cm² for PP, 10 kg/cm² for SS more Pressure on Request
