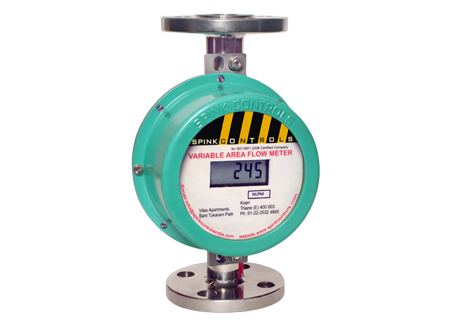

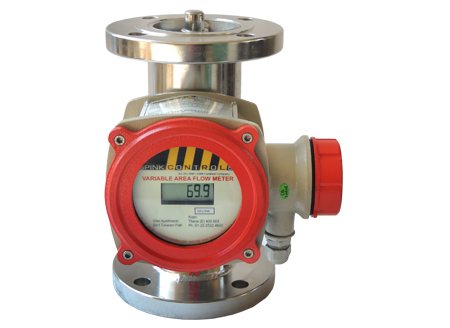

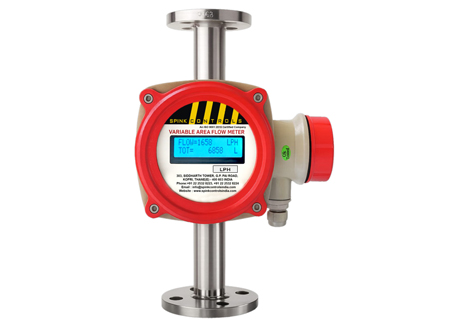

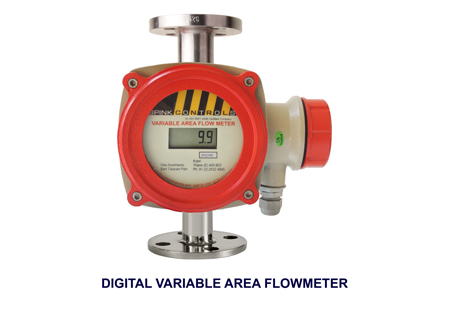

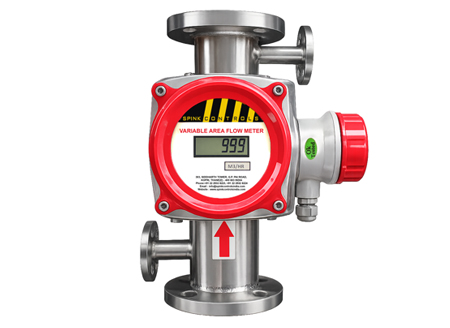

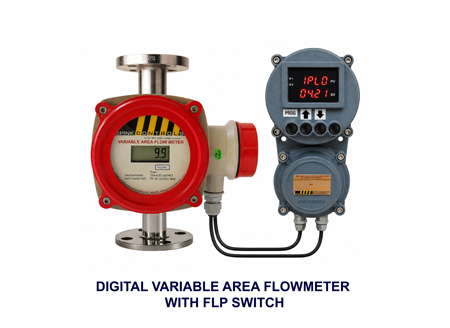

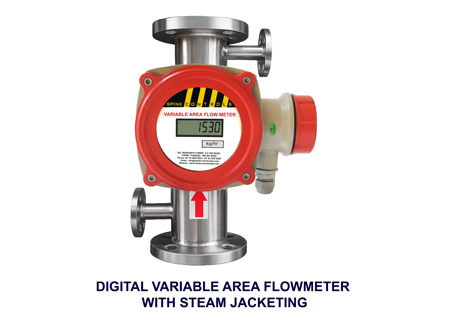

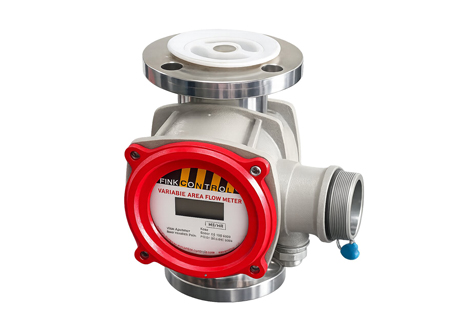

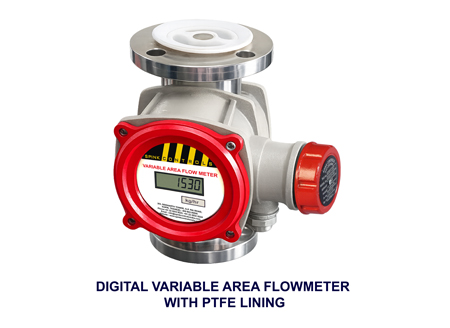

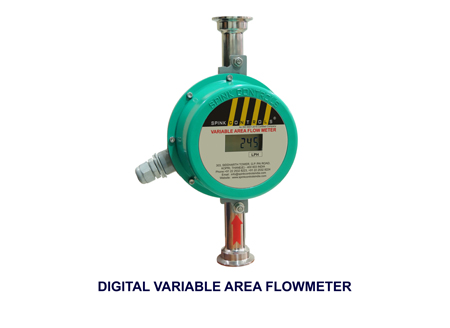

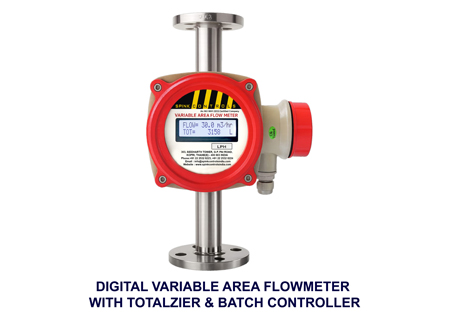

Digital Metal Tube Rotameter
It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment through a series of linkages and counter weight.The tube and the float combination determine the Flowrate

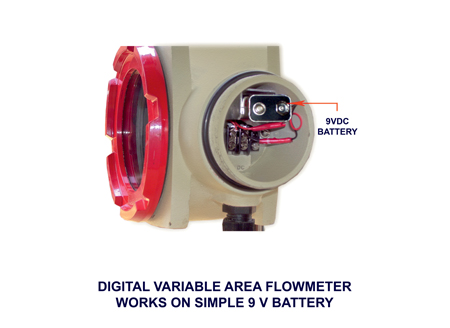

Digital Meter: The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout As such this flowmeter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.
Benefits Of Spink Controls Digital Variable Area Flow Meters : ( Digital Variable Area Flow Meters )
- ➩ Local indication without the need for auxillary power.
- ➩ Minimum pressure loss.
- ➩ Easy to read.
- ➩ 3 Suitable for low flow (10LPH) and High Flow 150 m3/hr
- ➩ Default inbuilt transmitter of 4 - 20mA (Loop Powered)
- ➩ No movement assembly reducing the maintenance.
Technical Specification :
- ➩ Accuracy : +/- 1.5% of FSR
- ➩ Range ability : 10:1
- ➩ Repeatability : +/- 0.25% of FSR
- ➩ Temperature Rating : -50 to 120 ℃
- ➩ Pressure Rating : 80 kg/cm2
- ➩ Flow Direction : Bottom to Top
- ➩ End connection : As per customer's requirement
- ➩ Wetted Part : To suitable specific liquid or gases
- ➩ Mounting position : Vertical.
- ➩ Indication : Digital flow rate
- ➩ Transmission : 2 wire loop powered
- ➩ Enclosure : Ex d IIB T4 IP67
- ➩ Power supply : 24VDC
Maximum Flow And Pressure Loss :
| Line size NB | 20 °C. water flow m3/hr | 0 °C. 1 atm Air flow Nm3/hr | Approx. Pressure Loss mm WC |
|---|---|---|---|
| 15 | 0.2 – 1.2 | 6 - 35 | 200 – 225 |
| 20 | 0.4 – 2.0 | 8 – 60 | 220 – 230 |
| 25 | 1 – 5 | 30 – 150 | 200 – 270 |
| 40 | 2.5 – 10 | 70 – 300 | 200 – 250 |
| 50 | 3.5 – 17 | 100 – 500 | 225 – 280 |
| 65 | 6 – 30 | 200 – 900 | 225 – 240 |
| 80 | 10 – 45 | 300 – 1200 | 225 – 280 |
| 100 | 20 – 100 | 600 – 3000 | 350 – 850 |
| 125 | 30 – 120 | 900 – 4000 | 300 – 850 |
| 150 | 30 – 150 | 900 – 4500 | 350 – 950 |
