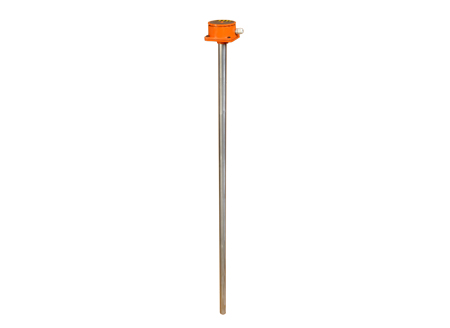

Fuel level transmitter
It is specially designed for diesel level measurement. It is the only transmitter in its class which measures minimum height as low as 65 mm with an accuracy of 0.5 mm this is directly mounted on any diesel generator fuel tank. This product is specially designed for mobile tower management system and has got proven track record at many locations.
Construction :

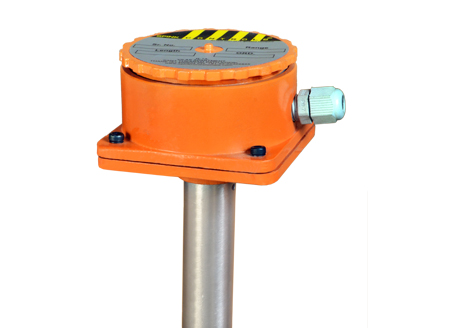

Consists of a sensing & ground concentric electrode with integral electronics enclosed in cast Aluminium enclosure. The probe is top mounted with threaded / flanged process connections. The capacitance formed between sensing & ground electrode is proportional to the change in liquid level, is sensed and converted to 4-20mA analogue output.
Technical Specifications:
- ➩ Measuring Range : From 65 mm to 1000 mm
- ➩ Transmitter Type : Loop Powered
- ➩ Supply Voltage : 12 to 24 V DC
- ➩ Out Put : 4-20ma @ Constant Current Load of 500 Ω RS-485 ( Optional )
- ➩ Temperature : -20 to 100℃
- ➩ Enclosure : Die-Cast Aluminum, Duly Approved for IP 65 / 67
- ➩ Resolution : 1mm
- ➩ Electrode Construction : Rigid Sensing with Concentric Ground Pipe
- ➩ Cable Gland : Polyamide X PG 9
