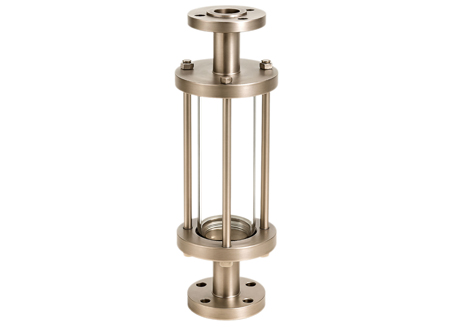

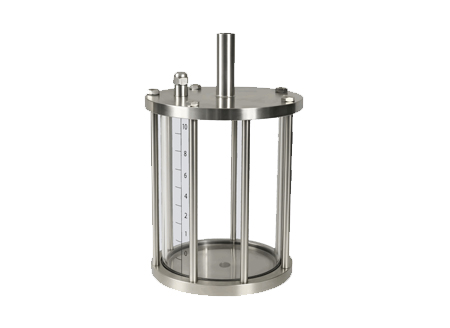

Calibration Pot

Application :

SERIES: SC/R-1800

A Calibration Pot is a vital instrument used to verify and measure the actual volume of liquid flowing through a pipeline. It ensures precise dosing or liquid transfer by allowing operators to observe and control the quantity of fluid passing through the system. Spink Controls has designed one of the most accurate and reliable calibration pots in the market now enhanced with a fully controlled and precise volume-detecting sensors. This advanced system allows easy, error-free measurement by detecting pre-defined liquid levels using high-accuracy probes.

Key Features :

• Integrated level sensor using SS probes at fixed levels.
• Ideal for batch dosing, daily verification, or routine calibration in water treatment, chemical injection, and process dosing applications.
• Suitable for integration with PLC/SCADA or local alarm systems.
• Customizable level points for tailored dosing requirements.

Application :

• Verifying dosing pump accuracy
• Preventing over-dosing or under-dosing
• Maintaining process consistency and regulatory compliance
• Suitable for automatic or manual calibration checks

Engineering Specification :

• Volume : 100 ml to 10,000 ml
• Pressure rating : 3 kg/cm² g
• Temperature rating: 70º C
• Process Connection : Flange connection, Threaded connection, other connection on request
• Material of Construction : SS 304, SS 316, SS 316L, PP, other on request
• Meaturing Tube: Borocialicate Glass
• Level Detection: SS Probes (customizable for level points required) upto 4 points
• Mounting Orientation: Vertical
• Controller Enclosure: Die Cast Aluminum Duly Approved Flame
