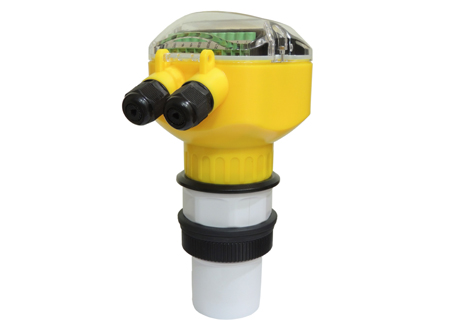

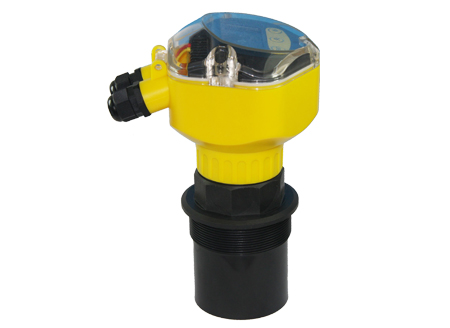

Ultrasonic Level Transmitter
Introduction
MODEL: SC / L - 901
The Ultrasonic Level Transmitter works on the time-of-flight principle. It emits ultrasonic sound waves at a frequency of 25 kHz toward the surface of the medium. The waves are reflected back as echoes, and the transmitter measures the time taken for the echo to return. This time is converted into distance, providing a continuous and accurate level measurement. Spink Controls’ Ultrasonic Level Transmitter is a non-contact type instrument designed for continuous level measurement of liquids and solids. It uses advanced ultrasonic pulse-echo technology to provide accurate and reliable measurement, even in challenging process conditions.
Key Features :
- Reliable & Cost effective
- Easily installed & maintenance free
- Measurement requirement without touching the medium
- Automatic adaptation to virtually all environments
- World’s smallest Ultrasonic open channel flow gauge
Engineering Specification
- Accuracy: 0.5 To 1 %
- Resolution Ratio: 3 Mm Or 0.1 % (Whichever Is Greater)

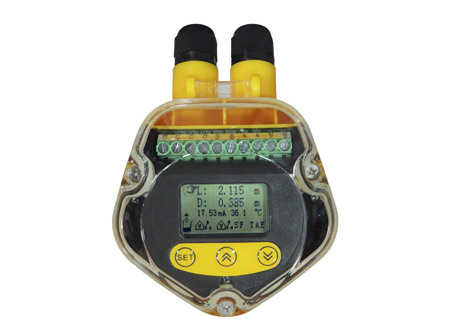

- Display: Lcd
- Beam Angle: 5 Degree @ 3Db Point
- Sensor Type: 25 Khz
- Communication: Rs 485, 232 (Optional)
- Probe Cable: None
- Power Consumption: 0.72 W For 2 Wire, 1.9 - 3.1 W For 4 Wire
- Housing Material: Abs + Uv
- Sensor Material: Aluminum (Ectfe)
- Sensor Housing: Pp
- Display Unit: Mm, Cm, M
- Weight: Upto 1.5 Kgs (3.08 Lbs)
- Analog Output:
• 4 Line System: 4 - 20 Ma / 510
• 2 Line System: 4 - 20 Ma / 2500 - Ip Grade:
• Display Instrument: Ip 66 / Neema 4
• Probe: Ip 68 - Relay Output: 2 Groups (I.E. Ac 250V/ 8A Or Dc 30V/ 5A) Optional, State Programmable
- Power Supply: • Standard Configuration: 24 Vdc
• Optional: 220V Ac ± 15 % 50 Hz - Ambient Temperature: Display Instrument: -20 TO 60°C, Probe: -20 TO 80°C
