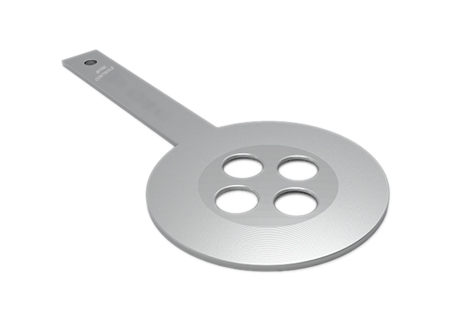

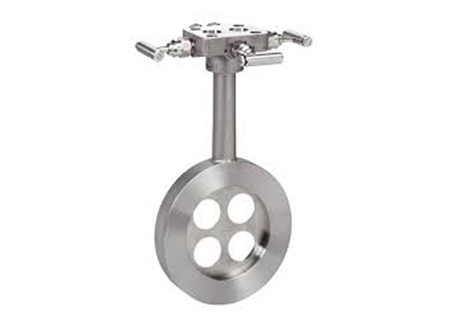

Conditioning Orifice Plate

Introduction

SERIES : SC / R -900

The Conditioning Orifice Plate integrates a flow conditioner with an orifice plate, creating a precise primary element that delivers high accuracy in flow measurement.

Reduced Straight Pipe Requirements: Requires only 2 diameters of straight pipe run upstream and downstream from most flow disturbances, saving installation space and costs.

Versatile Applications: Suitable for gas, liquid, and steam measurements

Available Sizes: 2" to 24"
