Introduction

SERIE: SC / R – 400

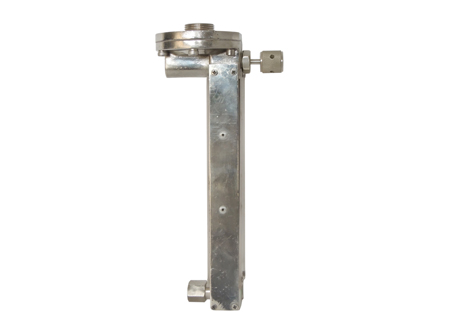

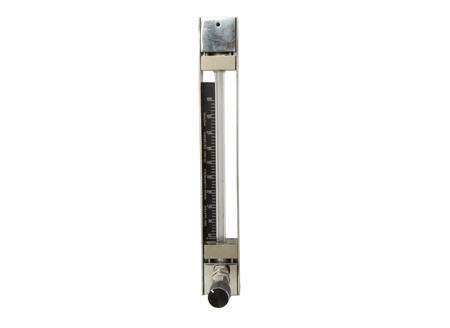

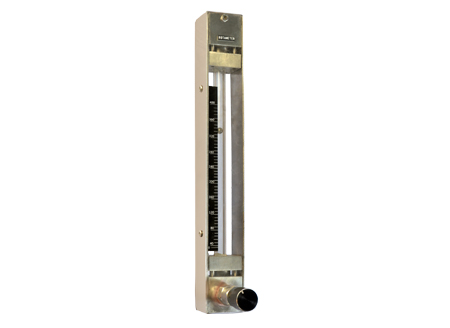

A Purge Rotameter with a Differential Pressure (DP) regulator is a precision device for measuring low flow rates in gases or liquids. The rotameter stabilizes and indicates flow rate using a float in a calibrated tube, while the DP regulator ensures accuracy by maintaining a consistent pressure, even with upstream or downstream fluctuations. This combination offers reliable, stable readings in sensitive applications.

Technical Specification :
  • Accuracy : ± 3% of FSR.
  • Rangeability : 10:1
  • Repeatability : ± 0.5% of FSR
  • Max Temperature : 120°C.
  • Max Pressure : 10kg/cm² (high Pressure on Request)
  • Connection : 1/4” BSP (M/F) others on Request
  • Direction of Connection : Rear Bottom To Top
  • Material of Construction : SS 316
  • Packing / Gaskets : Neoprene / Silicon / Viton / Ptfe
  • Cover : Acrylic / Poly Carbonate
