Digital Process Controller

Introduction

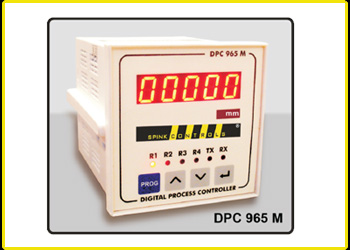

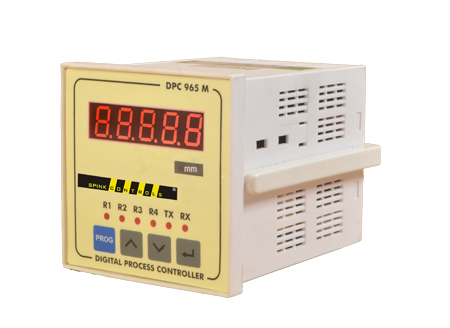

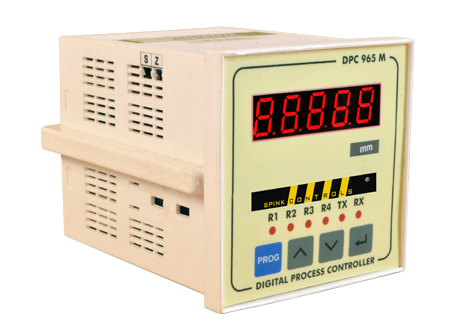

MODEL: SC / L - 1501 / DPC 965M

The DPC 965M is a compact and reliable microcontrollerbased process indicator and controller. It is designed to display process variables directly from a standard 4–20 mA DC loop without requiring any external power supply, while also offering versatile control and communication features

Application

Designed for indication and control applications in industrial processes
Large 7-segment Red LED display ensures visibility from long distances.
4½ digit resolution provides high accuracy of ±0.3% ±1LSD.
Accepts 4-20 mA DC linear input the most widely used signal in process industries

Features

Rugged, state-of-the-art microcontroller-based design.
4½ digit, ½-inch LED display for clear process value indication.
Field-settable flow totalizing and rate display.
Signal retransmission capability.
Programmable hysteresis for two or four relays.
User-configurable span for flexible scaling.
RS-485 serial communication with Modbus RTU protocol.
Fully compatible with SCADA and DCS applications.

Optional

Two / four relays with individually settable set points and hysteresis.
RS-485 port with Modbus RTU for integration with all standard
SCADA/DCS systems.
4–20 mA retransmission output for remote display or PLC connectivity.

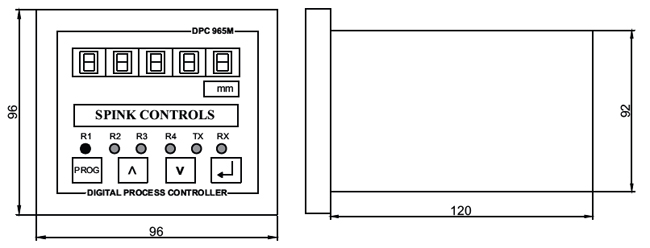

Dimensional Drawing

Engineering Specification

INPUT: 4-20 mA DC LINER
DISPLAY: 7 SEGMENT LED, 5-DIGIT PROCESS VALUE. DISPLAY SIZE = ½"
KEYBOARD: 4 KEY TRACK-TILE KEYBOARD
SCALING: PROCESS VALUE IS SCALABLE BY SOFTWARE WITH DECIMAL POINT SELECTION
RELAY OUTPUTS OPTIONAL: 2 / 4 RELAY OUTPUTS, CONTACT RATING 230 VAC, 1 AMP OPERATING ON 2 / 4 SET-POINTS WITH SETTABLE HYSTERISIS.
SUPPLY: 230 VAC / 110 VAC , ±10 %, SINGLE PHASE, 50 Hz
ACCURACY: ± 0.3 % of FSR ± 1 LSD
RESOLUTION: 4 ½ DIGIT
INDICATIONS: 3 mm LED INDICATION FOR RELAY AND SERIAL OPERATION
RETRANSMISSION OUTPUT (OPTIONAL): 4-20 mA TRUE RETRANSMISSION OUTPUT FOR INDICATION
TRANSMITTER POWER SUPPLY: 24 VDC, 100 mA POWER SUPPLY IS MADE AVAILABLE FOR THE EXTERNAL TRANSMITTER
DATA STORAGE: ALL SETTINGS ARE STORED IN A BATTERY BACKED RAM.
SERIAL COMMUNICATION OPTIONAL: ON LINE PC CONNECTIVITY THROUGH SERIAL PORT Rs 485 ON MODBUS PROTOCOL.
CONNECTIONS: On Screw type connectors
CABINET: PANEL MOUNTING ABS ENCLOSURE SIZE - 96 x 96 x 120 mm (H x W x D) - CUTOUT - 92 x 92 mm

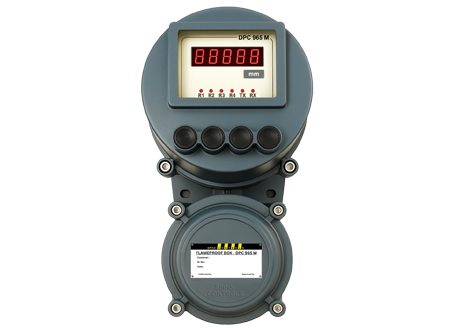

ENCLOSURE: FLAMEPROOF (Ex d IIA & IIB T6 IP66) 400 x 200 x 175 mm
