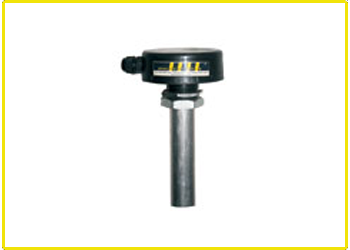

Diesel Level Transmitter

Diesel Level Transmitter

It is specially designed for diesel level measurement. It is the only transmitter in its class which measures minimum height as low as 65 mm with an accuracy of 0.5 mm.


This is directly mounted on any diesel generator fuel tank. This product is specially designed for mobile tower management system and has got proven track record at many locations.


  • ➩ Eltran 705 Abs : Diesel

Technical Specification :


  • ➩ Measuring Range : From 65mm and above.
  • ➩ Transmitter Type : Loop powered.
  • ➩ Supply Voltage : 12 to 24 V DC.
  • ➩ Out Put : 4–20mA @ constant current load of 500 Ohms.
  • ➩ Temperature : -20 to 100° C.
  • ➩ Enclosure : ABS, Duly approved for IP 65/ 67, with mounting plate.
  • ➩ Resolution : 0.1.
  • ➩ Accuracy : +/- 0.25 % FSR.
